Laboratory 14: Interoperability, Marshalling, Unsafe context #
Safe handles #
Create a program reading files using external functions from native system libraries.
Starting code #
Student
Task description #
Caution is required when interacting with code that is not managed - e.g. base C++, C. Safety measures provided by the .NET environment stop guaranteeing protection the moment code calls into external code. Structures created in unmanaged code are often represented by pointers or other identifiers that have unique values reserved for invalid states (commonly 0 or -1). Use classes inheriting from SafeHandle to make sure that resources you requested are valid before use.
A partially implemented class that imports system functions for handling files can be found in the FileInteraction project - in WindowsFile.cs or UnixFile.cs depending which operating system you use. Only the relevant one will be used for compilation. Take a look at the project file FileInteraction.csproj - conditional exclusion of the file that doesn’t match your system is implemented for you.
Check what values the file opening function declares as invalid. Make the MyFile class inherit from the correct SafeHandle so it matches the invalid values. Make sure you do it in WindowsFile.cs if you’re on Windows or UnixFile.cs if you’re on OSX or Linux. Finish the correct implementation for your system. Fill in Open and Read in the file MyFile.cs. You can test the program by running it.
After the workshop you’re encouraged to try this task for the other operating system setup.
Useful links:
Example solution #
Solution
Binding and Marshalling #
Use an unmanaged library to create visual patterns.
Starting code #
Student
- Binding.sln
- PatternGeneration/
- PatternGenerationDemo/
Task description #
Import the functions shared in pattern.h using LibraryImport in the PatternGeneration project, NativeMethods.cs. Declare all required classes and structures. Implement wrapping functions in the Pattern class (Pattern.cs) so that the library user only has to interact with managed functions.
- Some arguments might require the
[In]attribute to specify the direction of information exchange. Similarily, if there was a change in an argument that needed to be shown back to the caller, the[Out]tag would be appropriate. - Structures on the managed side of the interaction need to be laid out precisely like the ones on the unmanaged side. Alternatively, one can define custom marshalling. That requires the programmer to define rules for turning the unmanaged structures into their managed counterparts and vice versa using the
CustomMarshallerattribute. - Treat the
pattern_tstructure as opaque. Simply treat its pointer as one of theSafeHandlesand don’t worry about transfering data. Use the handle itself for calling the other imported functions, especially after you implement the inheritance.
The library distributors might not release the full internal data layout for the user. The user might care about only a small part of the structure and not need it whole. Use Marshall.Copy in the GetImage function (Pattern.cs) to extract the dimensions and contents of the color_t[] values array hidden under the opaque handle. Utilise the fact that the fields will be laid out sequentially like in pattern.h (with offset 0, then offset sizeof(int) and sizeof(int)*2). The struct color_t has the same layout as the Rgb24 structure. Use the acquired data to create an image with Image.LoadPixelData<Rgb24>.
Fill in the Main function in the PatternGenerationDemo project to create at least one image each with the functions pattern_enstripen and pattern_populate.
Useful links:
Example results #

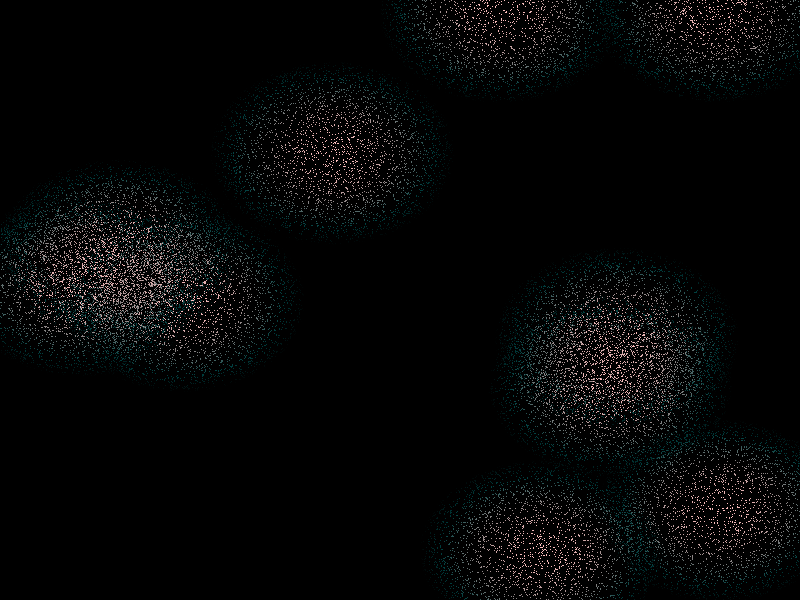

populate

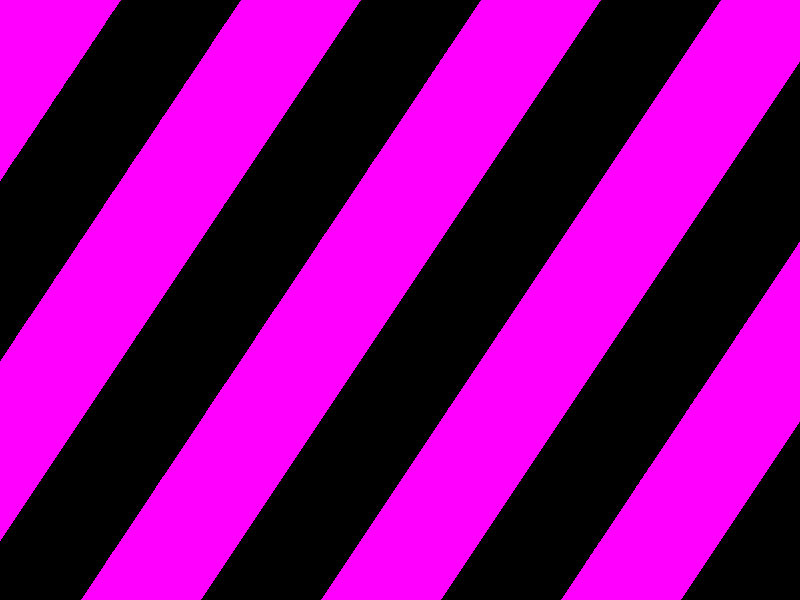

enstripen
Example solution #
Solution
- Binding.sln
- PatternGeneration/
- PatternGenerationDemo/
